Product Introduction:

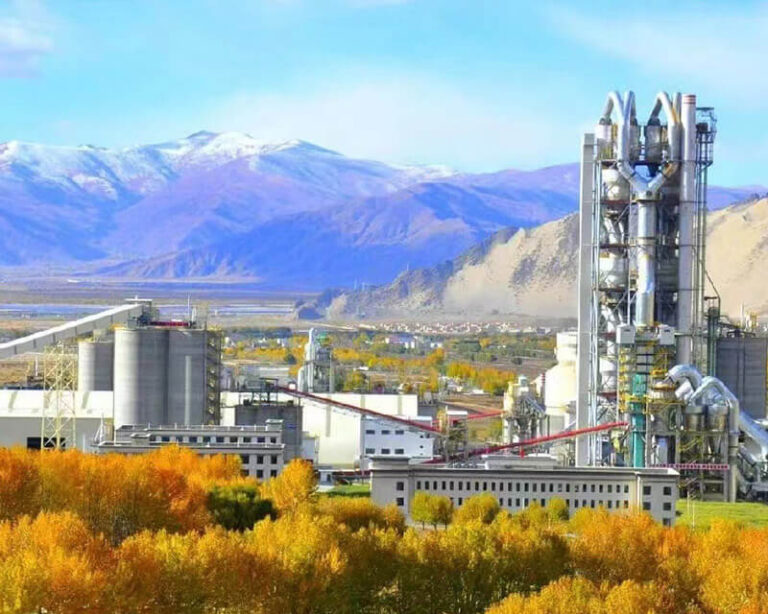

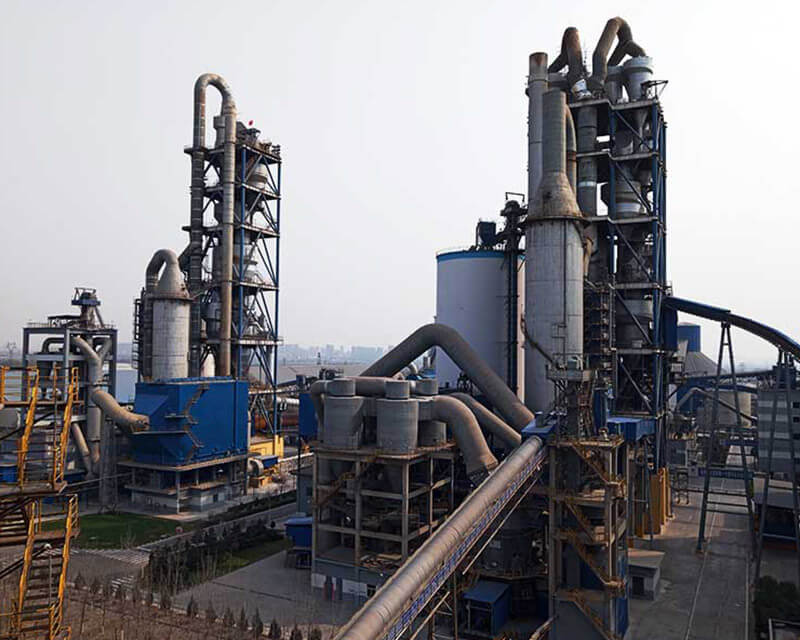

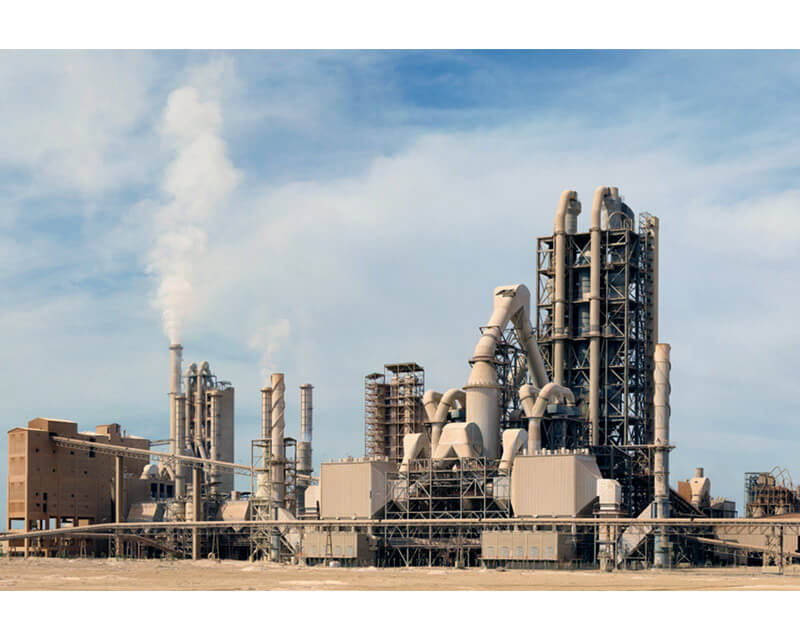

The cement production line is a cement equipment production line composed of a series of equipment for producing cement. It mainly consists of crushing and pre-homogenization, raw material preparation and homogenization, preheating and decomposition, cement clinker burning in rotary kiln, cement grinding and packaging, etc. Cement rotary kiln is the main equipment for calcining cement clinker and has been widely used in cement, metallurgy, chemical and other industries.
The equipment consists of a cylinder, a supporting device, a supporting device with a blocking wheel, a transmission device, a movable kiln head, a kiln tail sealing device, a combustion device and other components. The rotary kiln has the characteristics of simple structure, reliable operation and easy control of the production process.
Product Advantages:
01
Homogenize raw material components and reduce quality fluctuations to facilitate the production of higher quality clinker;
02
Expand the utilization of mining resources, improve mining efficiency, and produce less waste rock during the mining process;
03
Reduce the control requirements for mining quality, low down the mining cost;
04
Strong adaptability to sticky and wet materials;
05
Provide long-term stable raw materials for the factory, and can also batch raw materials with different components in the yard to make it a pre-batching yard, creating conditions for stable production and improving equipment operation rate;
06
High degree of automation.
Main Technical Specifications:
| Standard（m） | Diameter（m） | Length（m） | Slope（%） | Yield（t/d） | Speed（r/min） | Motor Power（kw） | Remark |
| Φ2.5*40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | |
| Φ2.5*50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | |
| Φ2.5*54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | Outside Decomposition |
| Φ2.7*42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | —– |
| Φ2.8*44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | Outside Decomposition |
| Φ3.0*45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | —– |
| Φ3.0*48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | Outside Decomposition |
| Φ3.0*60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 | —– |
| Φ3.2*50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | Outside Decomposition |
| Φ3.3*52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | Preheating Decomposition |
| Φ3.5*54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | Preheating Decomposition |
| Φ3.6*70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | Preheating Decomposition |
| Φ4.0*56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | Preheating Decomposition |
| Φ4.0*60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | Preheating Decomposition |
| Φ4.2*60 | 4.2 | 60 | 4 | 2750 | 0.041-4.07 | 375 | Preheating Decomposition |
| Φ4.3*60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | Preheating Decomposition |
| Φ4.5*66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | Preheating Decomposition |

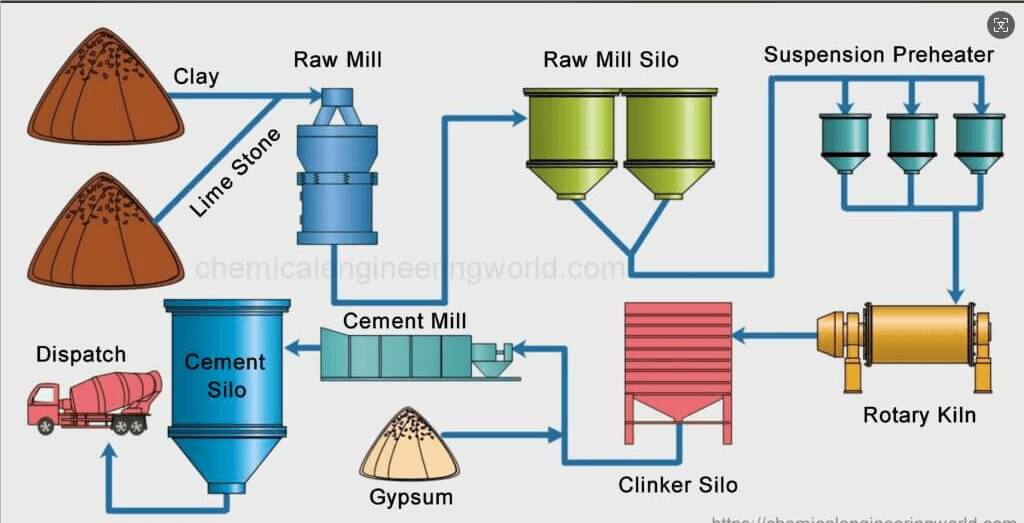

Process Flow Chart:
