Product Introduction:

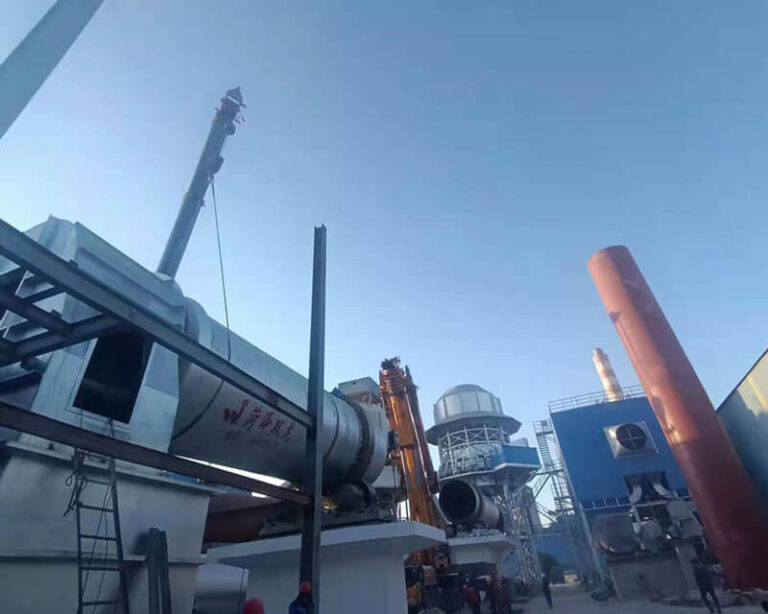

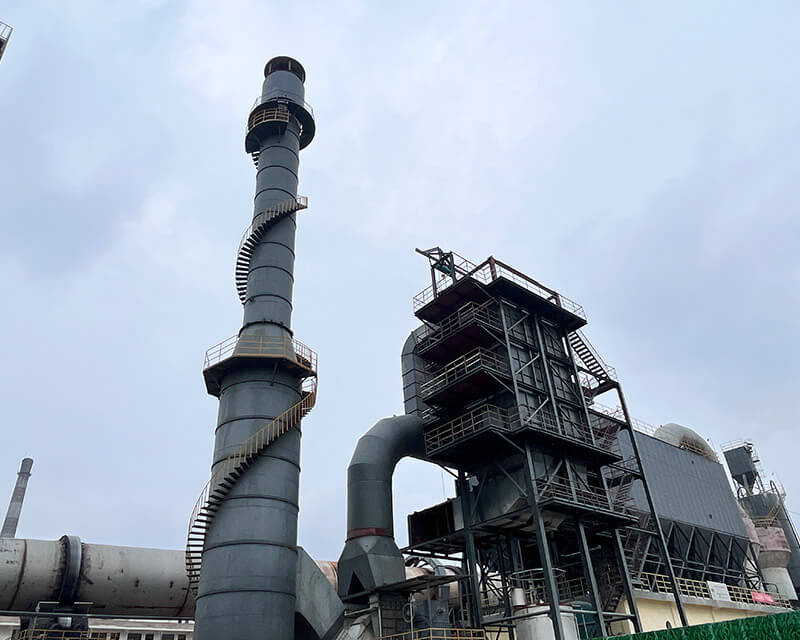

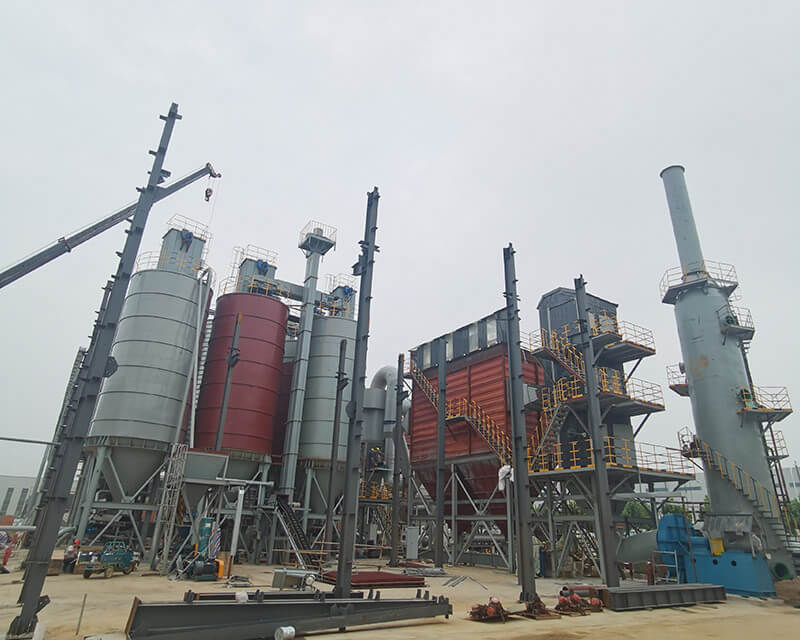

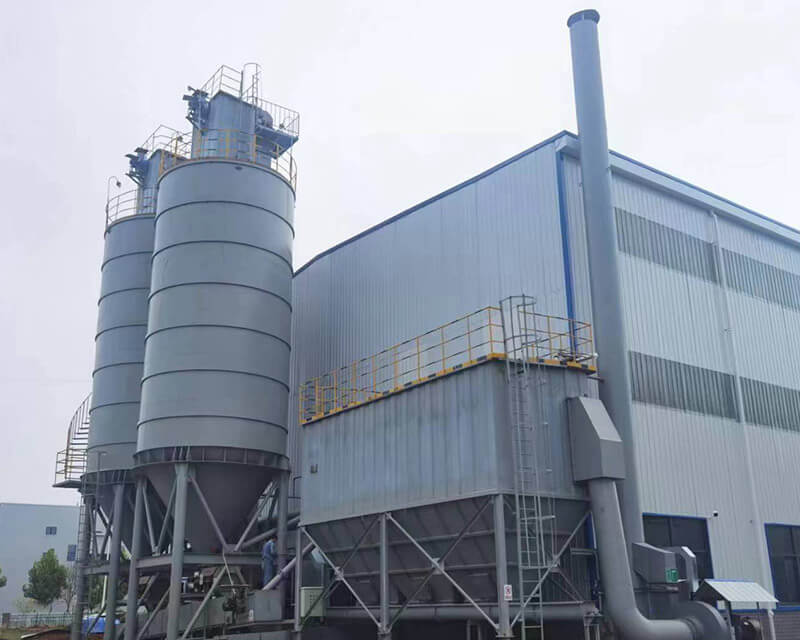

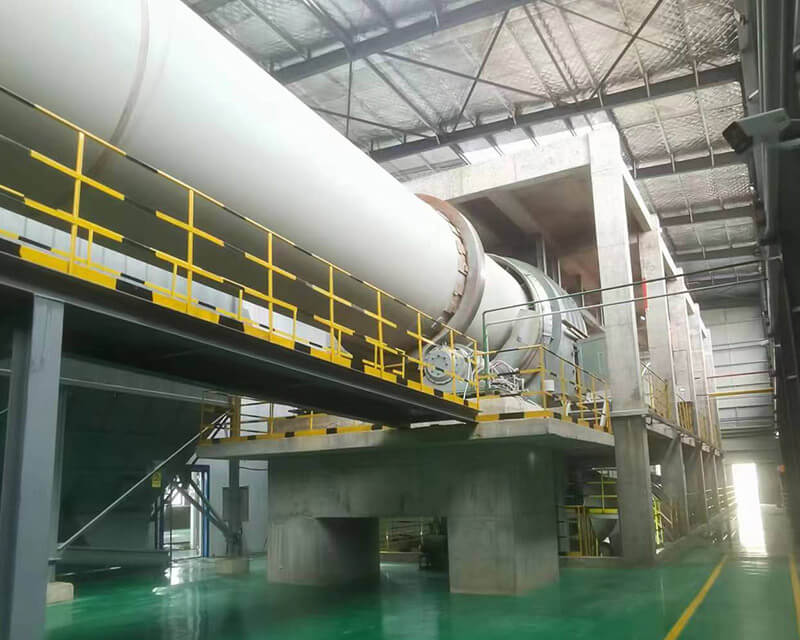

The comprehensive solid/hazardous waste incineration treatment system is mainly based on rotary kiln and secondary combustion chamber incineration technology. It adopts advanced and mature processes in China and abroad, determines the process route and equipment configuration according to the characteristics of the treated materials provided by the owner, and provides a customized whole process services to ensure that pollutant emissions meet current standards.
Our company can provide complete industry chain services from overall project planning to detailed process formulation, process design, equipment design and manufacturing, engineering installation, commissioning, etc. We can provide the customers with complete solid/hazardous waste treatment system solutions.
Product Advantages:
01
Provide complete full industry chain services and have complete solid (hazardous) waste treatment system solutions;
02
Advantages of hazardous waste products: high-temperature incineration to achieve harmlessness, reduction, stabilization and resource utilization;
03
Advantages of various types of sludge and other solid waste products: resource disposal, waste utilization, production of construction ceramsite;
04
The furnace has a large heat load and the materials are burned thoroughly, which is enough to handle the complete incineration of a large amount of hazardous waste;
05
A material turning device is added to the rotary kiln, which not only improves the incineration efficiency but also expands the adaptability of the rotary kiln to waste.
Main Technical Specifications:
| No. | Dimension/m | Capacity（t/d） | Rotation Speed（rpm） | Support Number |
| 1 | Φ2.2*9m | 20-30 | 0.2-2 | 2 |
| 2 | Φ2.6*10m | 30 | 0.15-1.5 | 2 |
| 3 | Φ2.5*13m | 35 | 0.2-2 | 2 |
| 4 | Φ3.0*11m | 40 | 0.2-2 | 2 |
| 5 | Φ3.2*14m | 50 | 0.2-2 | 2 |
| 6 | Φ3.3*15m | 60 | 0.2-2 | 2 |
| 7 | Φ3.5*16m | 60 | 0.2-2 | 2 |
| 8 | Φ3.8*16m | 50-70 | 0.1-1.1 | 2 |
| 9 | Φ4.0*14m | 80 | 0.1-1.1 | 2 |
| 10 | Φ4.2*16m | 100 | 0.1-1.0 | 2 |
| 11 | Φ4.5*16m | 100 | 0.05-0.5 | 2 |
